2015 New Tech OLED panel,140×140mm stylish OLED panel lights


The 140×140mm stylish OLED panel lights is 0.88mm thick panel and has an efficiency of 60lm/W, CRI over 90, and has output levels of 75lm with a nominal input (8.5V 150mA). The panel’s output can reach 1,200lm which is similar to a common 60-75 Watt incandescent lamp.This is significant because it marks first time that OLEDs can be considered as an energy-efficient / human-friendly light source available for general purpose use.

Other Products



Why we deserve to have it ?

Exhibition

LOOK FORWARD TO YOUR REQUIRY

Product Advantage

Technical Parameter

TYPE FLEXIBLE
MODEL N6SC30 N6SC40
CCT(K) 3000 4000
Thickness(mm) 0.88 0.88
Efficacy(lm/w) 60 55
CRI 90 90
Flux(lm) 150 150
Uniformity(%) >85 >85
Voltage(V) 8.5 6
DC Current(mA) 300 480
LT70(K Hrs) 40 30

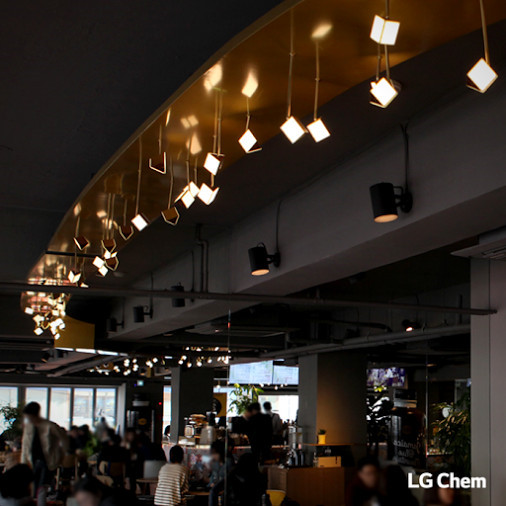

Application Context
