New Product With High Quality Is 53×55mm OLED Panel Light
UIV Chem(Yurui Shanghai Chem Co.,Ltd)doing OLED R&D for many years ,the strategy partner of LG Chem.Supply OLED Marterials to LG and also the agent of LG OLED panel light.
We develop OLED panel light's technique for the health and simple life for human.
-
-
-
-
Technical Parameters:
| TYPE | SQUARE | |
| MODEL | N6SB30 | N6SB40 |
| CCT(K) | 3000 | 4000 |
| Thickness(mm) | 1.97 | 1.97 |
| Efficacy(lm/w) | 60 | 55 |
| CRI | 90 | 90 |
| Flux(lm) | 20 | 20 |
| Uniformity(%) | >85 | >85 |
| Voltage(V) | 8.5 | 8.5 |
| DC Current(mA) | 40 | 60 |
| LT70(K Hrs) | 40 | 30 |

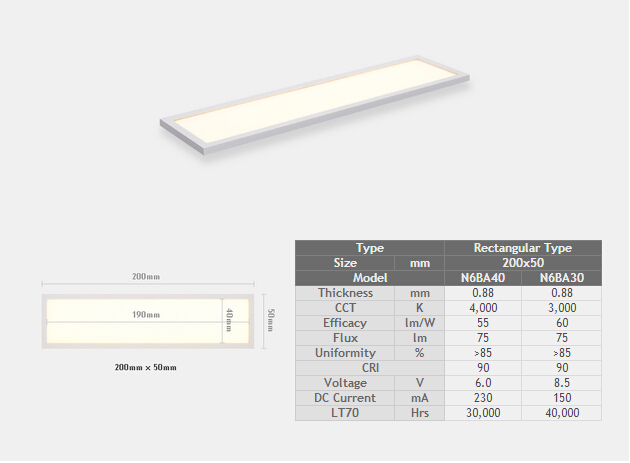

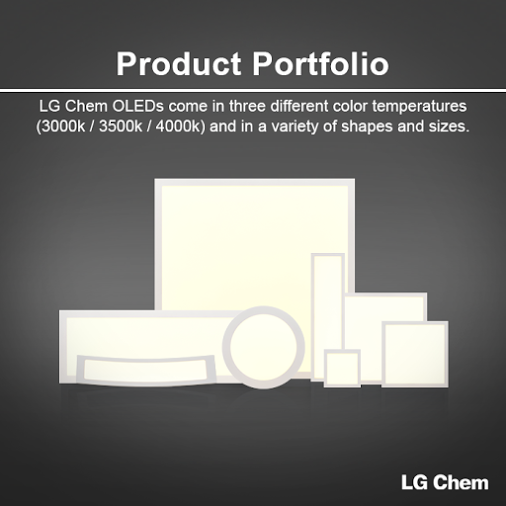

Available OLED Panel Light

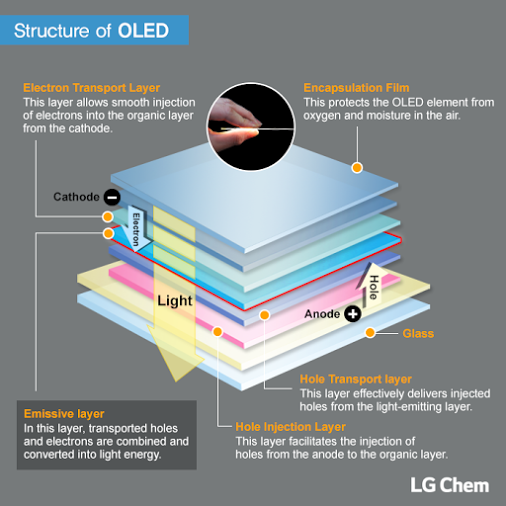

About OLED Light-Structure&Principle
-
OLED (Organic Light Emitting Diode) is an organic material-based surface light source.
The source of light is an EML that responds to electric currents by emitting light. Other
layers such as, ETL, HTL and HIL optimize the flow of electric currents to maximize the
EML`s light emission.(PS:ETL (Electron Transport Layer) HTL (Hole Transport Layer)
EML (Emissive Layer) HIL (Hole Injection Layer))

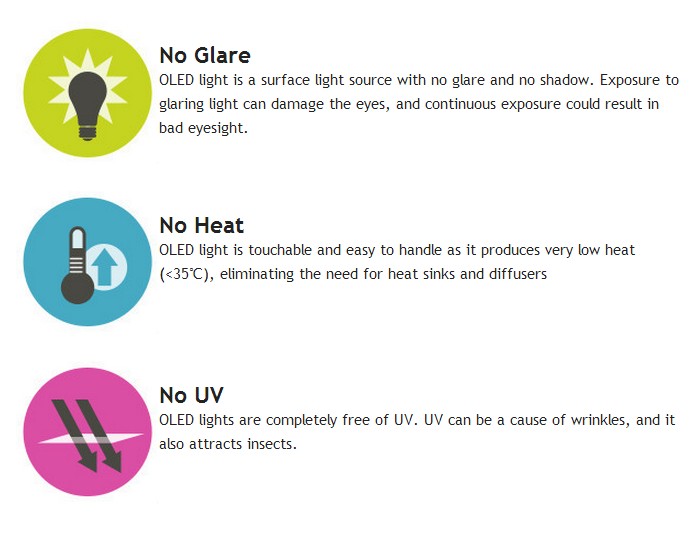

The Products Advantage
-

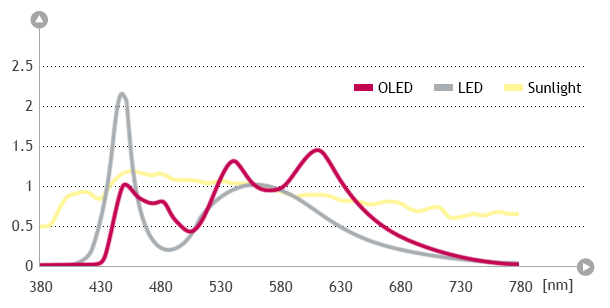

Spectral Power Distribution
-
-
OLED lights have spectral power distributions closest to sunlight, and people feel emotionally comfortable
under OLED light. Therefore,OLEDs are ideal for places where natural light is unavailable, or for places
where good quality light is needed.

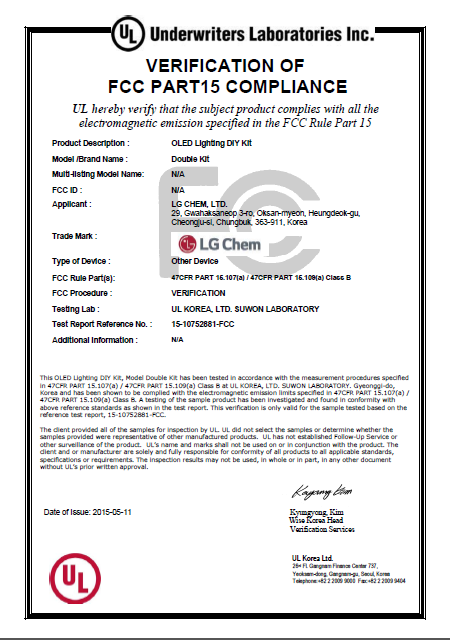

Certificate
Exhibition
-
